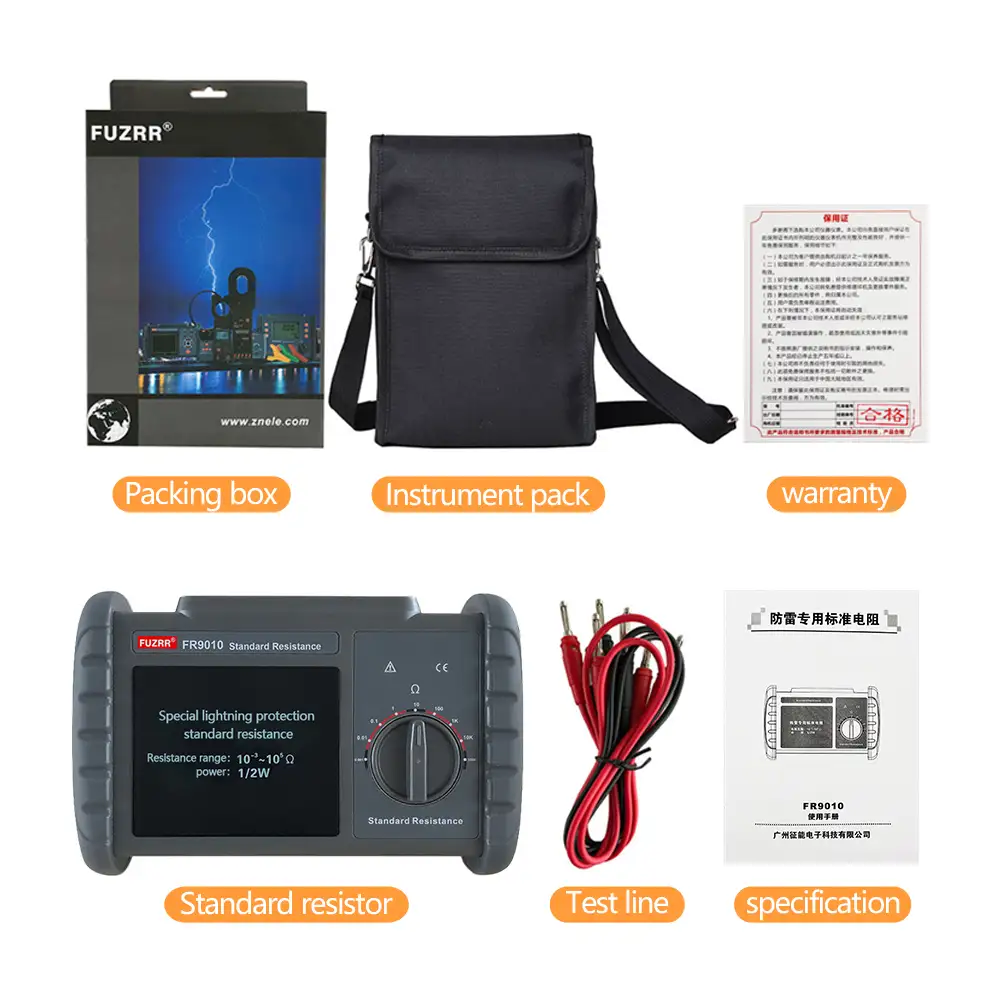

ES9010 – Standard Resistor

A high-precision standard resistor (0.05%) designed for the calibration of grounding resistance testers and equipotential bonding testers.

SKU SKU-ES9010 Categories , Brand:
The ES9010 standard resistor consists of nine high-precision, military-grade wirewound resistors connected in series. It is designed for ease of use, allowing direct shifting between resistance values without the need to change wiring. This unit is specifically customized for the calibration of grounding resistance testers, equipotential testers, and other metrological instruments. With a maximum accuracy of 0.05%, it serves as a portable and efficient replacement for traditional single resistors like the BZ3 series.
Features
  • High accuracy up to 0.05%.
  • Direct shifting without needing to change wiring.
  • Features military-grade wirewound resistors.
  • Utilizes a four-wire method for precise calibration.
  • Compact, lightweight, and easy to carry.
  • Low temperature coefficient (±25ppm).
Measurement Range Resistance 0.001 Ω ~ 10 kΩ
Accuracy Resistance (10 Ω ~ 10 kΩ) ±0.05%
Resistance (100 kΩ) ±0.1%
Resistance (0.1 Ω ~ 1 Ω) ±0.2%
Resistance (0.01 Ω) ±0.5%
Resistance (0.001 Ω) ±2%
Readings
Logging Rate
Battery
Calibration Certificate Available Separately Available Separately
